Hydr-App Dana Brevini Agricultural P.T.O Gearboxes

Here at VHS Components, we stock and supply Hydr-App Dana Brevini agricultural P.T.O Gearboxes. HYDR-APP is part of the Dana Brevini group and specialises in the design and production of hydraulic power-packs and transmission systems for industry and agriculture.

The HYDR-APP Dana Brevini Gearboxes of the ML and B series are used mainly for connecting hydraulic pumps to the power take-offs of agricultural tractors. PTO output, standardised at either 540 or 1,000 rpm, is, in this way, increased to optimum operating speeds for the hydraulic pumps.

At VHS Hydraulic Components we offer the following HYDR-APP Dana Brevini P.T.O Gearboxes:

HYDR-APP DANA BREVINI ML32 SERIES P.T.O GEARBOX (GROUP 2)

HYDR-APP ML32 PTO Gearbox, Group 2, Female 1:3.8 Ratio
Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 2 Pump mount
• 1 3/8" Female Spline Shaft
• 1 : 3.8 Ratio
• ML32-2-1/3.8

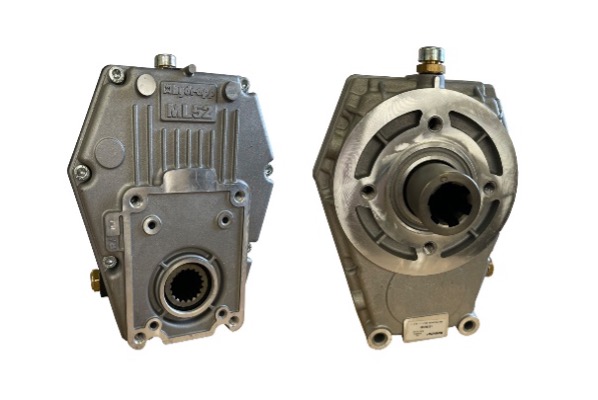

HYDR-APP DANA BREVINI ML52 SERIES P.T.O GEARBOX (GROUP 2-3)

HYDR-APP ML52 PTO Gearbox, Group 2-3, Female 1:3 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 2 / Group 3 Pump mount
• 1 3/8" Female Spline Shaft
• 1 : 3 Ratio
• ML52-2-1/3-C

HYDR-APP ML52 PTO Gearbox, Group 2-3, male 1:3.8 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 2 / Group 3 Pump mount
• 1 3/8" male Spline Shaft
• 1 : 3.8 Ratio
• ML52-1-1/3

HYDR-APP ML52 PTO Gearbox, Group 3 female, 1.2 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft
• 1 : 2 Ratio
• ML52-2-1/2

HYDR-APP ML52 PTO Gearbox, Group 3, Female 1:3 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft
• 1 : 3 Ratio
• ML52-2-1/3

HYDR-APP ML52 PTO Gearbox, Group 3, Female 1:3.4 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft
• 1 : 3.4 Ratio
• ML52-2-1/3.4

HYDR-APP ML52 PTO Gearbox, Group 3, Female 1:3.8 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft
• 1 : 3.8 Ratio
• ML52-2-1/3.8

HYDR-APP ML52 PTO Gearbox, Group 3, Female QRC, 1:2 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft, (QRC)
• 1 : 2 Ratio
• ML52-3-1/2

HYDR-APP ML52 PTO Gearbox, Group 3, Female QRC, 1:3 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft, (QRC)
• 1 : 3 Ratio
• ML52-3-1/3

HYDR-APP ML52 PTO Gearbox, Group 3, Female QRC, 1:3.4 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft, (QRC)
• 1 : 3.4 Ratio
• ML52-3-1/3.4

HYDR-APP ML52 PTO Gearbox, Group 3, Female QRC, 1:3.8 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" Female Spline Shaft, (QRC)
• 1 : 3.8 Ratio
• ML52-3-1/3.8

HYDR-APP ML52 PTO Gearbox, Group 3, male 1:3 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" male Spline Shaft
• 1 : 3 Ratio
• ML52-1-1/3

HYDR-APP ML52 PTO Gearbox, Group 3, male 1:3.4 Ratio

Hydr-app Dana Brevini Speed Increasing Aluminium Gearbox
• Group 3 Pump mount
• 1 3/8" male Spline Shaft
• 1 : 3.4 Ratio
• ML52-1-1/3.4

Please see below the link to the Data Sheet:
https://www.brevinifluidpower.com/wp-content/uploads/2019/02/GearBoxes-E_DOC00071.pdf

WE ARE A DANA BREVINI UK DISTRIBUTOR.

To enquire about HYDR-APP P.T.O Gearboxes, please contact VHS Hydraulic Components on: 0114 276 4430   / E: info@hydraulic-components.net or visit our website at:  https://www.hydraulic-components.net/hydrapp?mfp=path[143]
HYDR-APP S.P.A. hydraulics is part of the Dana Brevini Group. We supply HYDR-APP PTO Gear Boxes, HYDR-APP OT Gear Pumps, HYDR-APP Electromagnetic Clutches, HYDR-APP Mechanical Clutches and HYDR-APP Bearing Supports.
