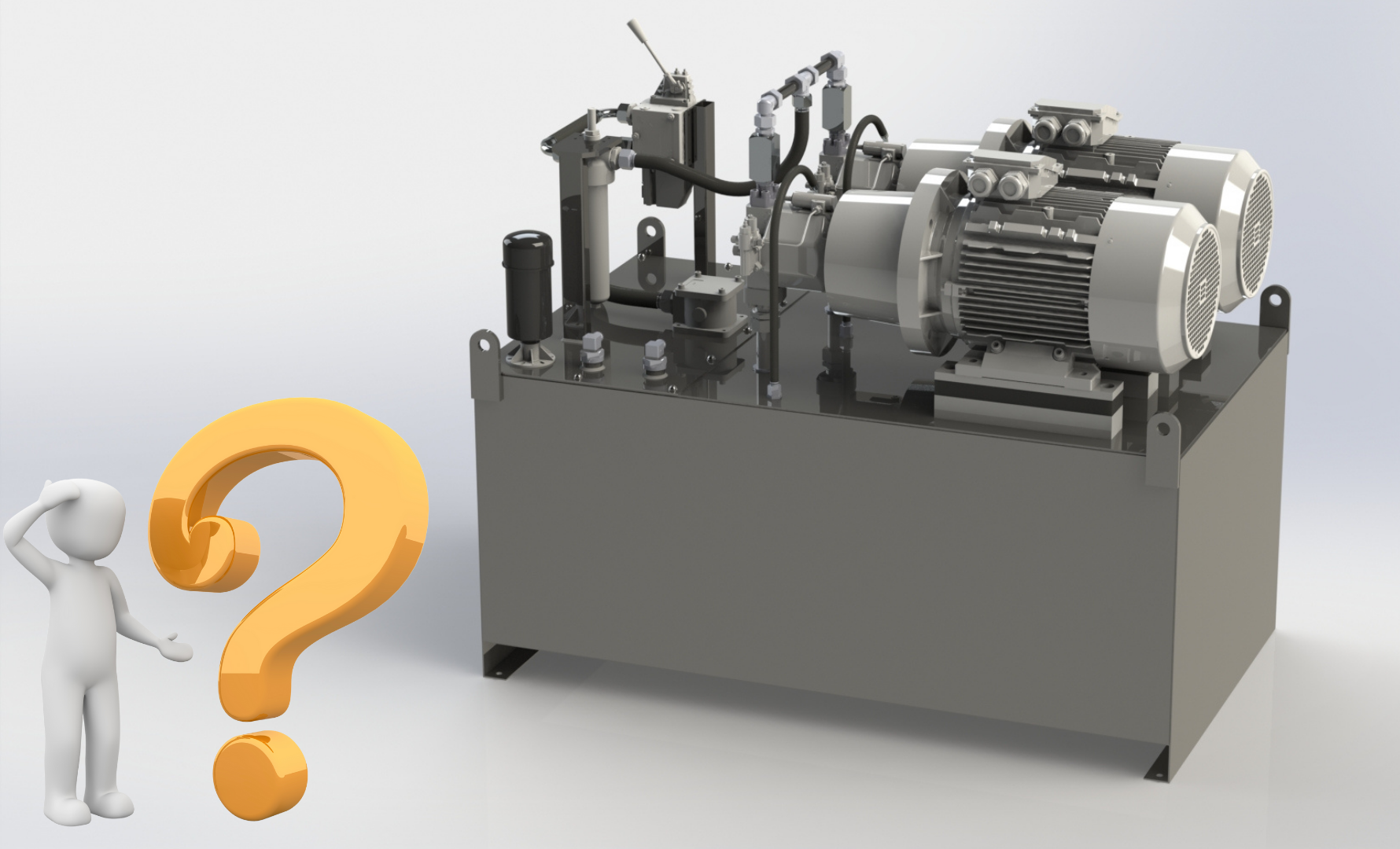

A Hydraulic Power Pack in basic terminology, is a self-contained unit that consists primarily of a prime mover (either an engine or electric motor) a hydraulic pump, a valve and a hydraulic tank reservoir.
By utilising fluid to transmit power from one location to another, hydraulic power packs can generate large amounts of power, which in turn can be used to drive hydraulic machinery. Another way to think of a hydraulic power pack is that it is a portable power delivery system that holds energy for a hydraulic mechanism. A good analogy to think what a hydraulic power pack is, is to consider the role of an electric battery, which stores energy for a circuit to draw on when is required. HPU’s are used in a wide range of industrial applications and machines, especially where there is no direct access to a power source.
How is hydraulic power unit required power calculated?
Hydraulic power is defined as flow multiplied by pressure. The hydraulic power supplied by a pump is: Power = (P x Q) ÷ 600 - where power is in kilowatts [kW], P is the pressure in bars, and Q is the flow in litres per minute. ** based upon 100% efficiency; 90% efficiency would equate to 75 ÷ 0.9 = 83.3kW.
Hydraulic Power Pack Manufacturer
At VHS Hydraulic Components we don’t just supply components, we design and manufacture bespoke hydraulic power pack systems to meet our customers exact requirements. With the combined experience and technical expertise from our sister company Neilson Hydraulics, we pride ourselves in helping our customers solve their hydraulic questions from ‘concept to completion.’
Bespoke Power Pack Designs
· Flows from 0.22L/PM to 200 L/PM
Petrol Driven Mini Hydraulic Power Packs
In addition, we offer a range of petrol driven engine, mini hydraulic power packs that are small and compact, making them ideal for a wide range of mobile applications.
· Flows up to 20 L/PM
(Download our interactive Powerpack order form)
