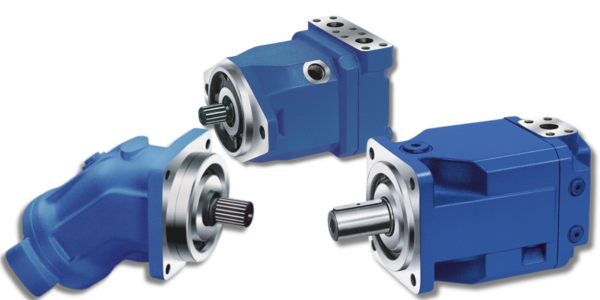

Bosch Rexroth Fixed Motors

"VHS Hydraulic Components supplies the complete range of Fixed Displacement Motors by Bosch Rexroth, designed for various industrial manufacturing applications."

Fixed displacement motors are designed to provide a consistent and predetermined amount of hydraulic power output, regardless of the load or pressure conditions. They are commonly used in applications where a specific speed or torque is required, and variations in output are not acceptable. These motors are known for their reliability, precision, and durability, making them suitable for a wide range of industrial machinery and equipment, including conveyors, winches, machine tools, and more.

Bosch Rexroth offers a comprehensive range of fixed displacement motors to cater to different power and performance requirements, ensuring that they can be effectively integrated into various hydraulic systems across industries.

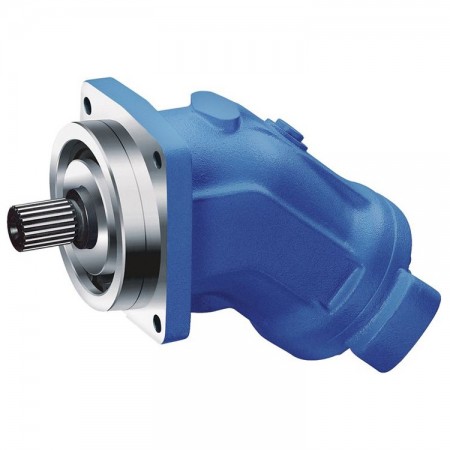

Bosch Rexroth A2FM Axial Piston Fixed Motors

The Bosch Rexroth A2FM Axial Piston Fixed Motor is a fixed displacement motor with axial tapered piston transmission in bent axis design for hydrostatic drives in the open and closed circuit. With axial piston units in bent axis design, the pistons are arranged diagonally to drive the shaft. The pistons are directly supported by the drive shaft and create pressure-dependent torque.

VHS Hydraulic Components supplies the following Bosch Rexroth A2FM Axial Piston Motors:

• All-purpose high pressure motor

• Size 5…16, 160… 1000

• Nominal pressure up to 400 bar

• Maximum pressure up to 450 bar

• Open and closed circuits


Key features of the Bosch Rexroth Axial Piston Fixed Motor A2FM include:

• Large variety of available nominal sizes allows exact adjustment to the application.

• High power density.

• Very high total efficiency.

• High starting efficiency.

• Working ports SAE flange or thread.

• Optional with integrated pressure relief valve.

• Optional with mounted additional valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve.

• Bent-axis design.

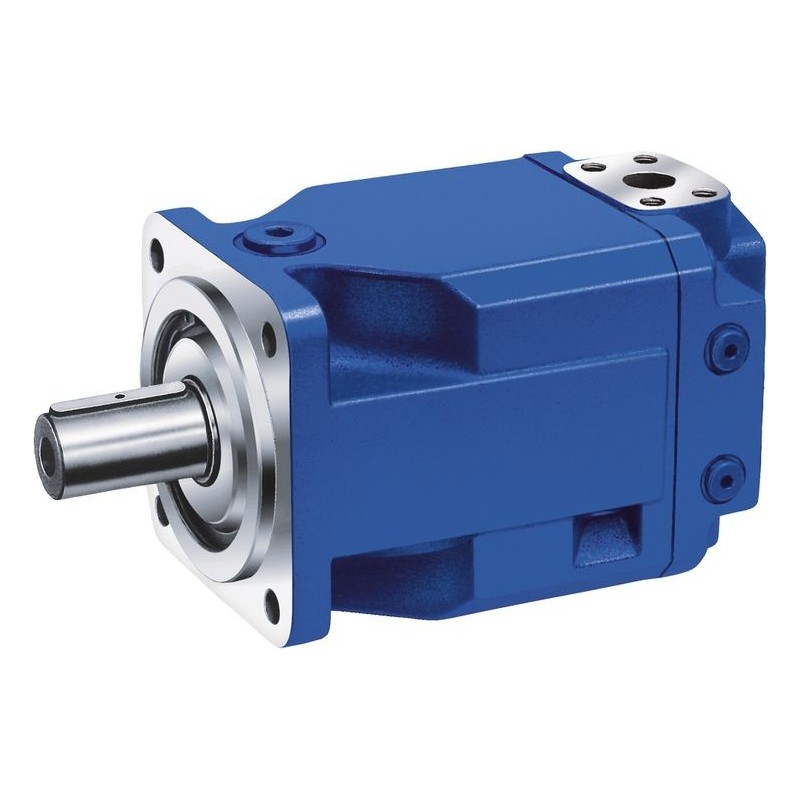

BOSCH REXROTH FIXED DISPLACEMENT MOTORS A4FM

Fixed displacement motors A4FM. Sizes NG22 to 500 open and closed circuits

• Series 1 and 3

• Size 22...500

• Nominal pressure up to 400 bar

• Peak pressure up to 450 bar

• Open and closed circuit


BOSCH REXROTH FIXED DISPLACEMENT MOTORS A4FM

• Series 1 and 3

• Size 22...500

• Nominal pressure up to 400 bar

• Peak pressure up to 450 bar

• Open and closed circuit


Features:

• Axial Piston Fixed Displacement Motor A4FM of swashplate design is used in open and closed loop circuits for hydrostatic drives.

• Output speed is proportional to input flow and inversely proportional to motor displacement.

• Output torque increases with the pressure drop across the motor between the high and low pressure sides.

• Long service life, optimum efficiencies.

• Compact design for special applications where A2FM cannot be applied.

• Proven rotary group in swashplate-technology.

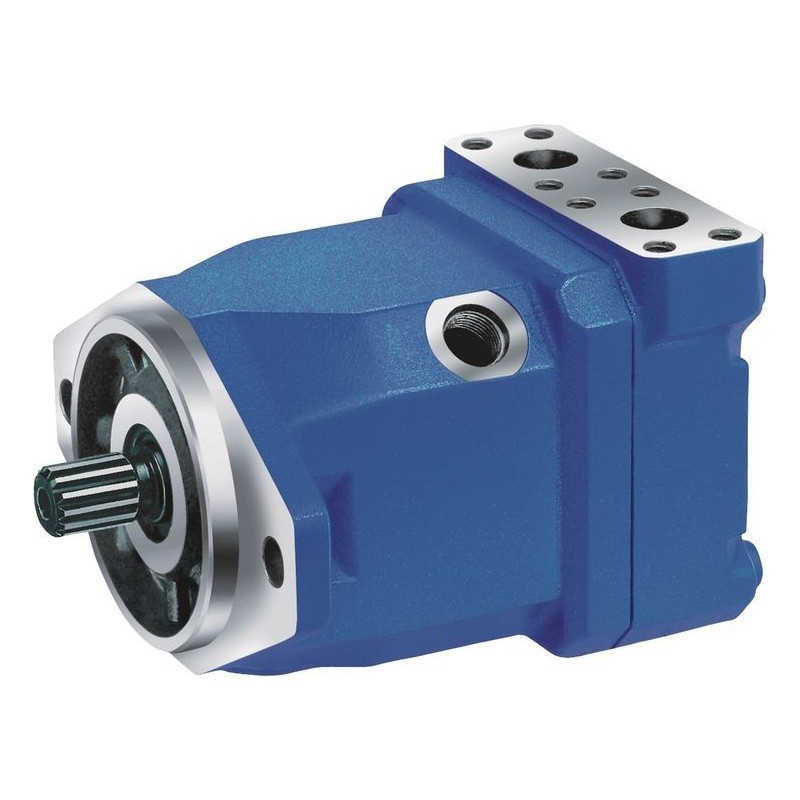

BOSCH REXROTH FIXED DISPLACEMENT MOTORS TYPES

A10FM / A10FE

Fixed displacement motors types A10FM / A10FE Sizes NG18 to 63 open & closed circuits

• Series 52

• Size 10...63

• Nominal pressure 280 bar

• Peak pressure 350 bar

• Open and closed circuit


BOSCH REXROTH FIXED DISPLACEMENT MOTORS TYPES A10FM / A10FE

• Series 52

• Size 10...63

• Nominal pressure 280 bar

• Peak pressure 350 bar

• Open and closed circuit


Features:

• Fixed displacement motor in axial piston swashplate design for hydrostatic drives in open and closed circuit operation.

• The output speed is proportional to the inlet flow.

• The output torque increases with the pressure differential between the high and low pressure sides.

• For use in mobile and industrial applications.

• Long service life.

• High permissible output speeds.

• Well proven A10-rotary group technology.

• High power to weight ratio – compact design.

• Plug-in version for space saving installation.

• Low noise level.

• Mechanical and hydraulic connections also acc. to SAE standards.

• Speed sensor optional.

• Integrated anti cavitation valve optional, i.e. for fan drives.


We are a Certified Excellence Bosch Rexroth Sales Partner.

To enquire about Bosch Rexroth hydraulics, including Bosch Rexroth Motors, please contact VHS Hydraulic Components on: 0114 276 4430   / E: info@hydraulic-components.net or visit our website at: https://www.hydraulic-components.net.
