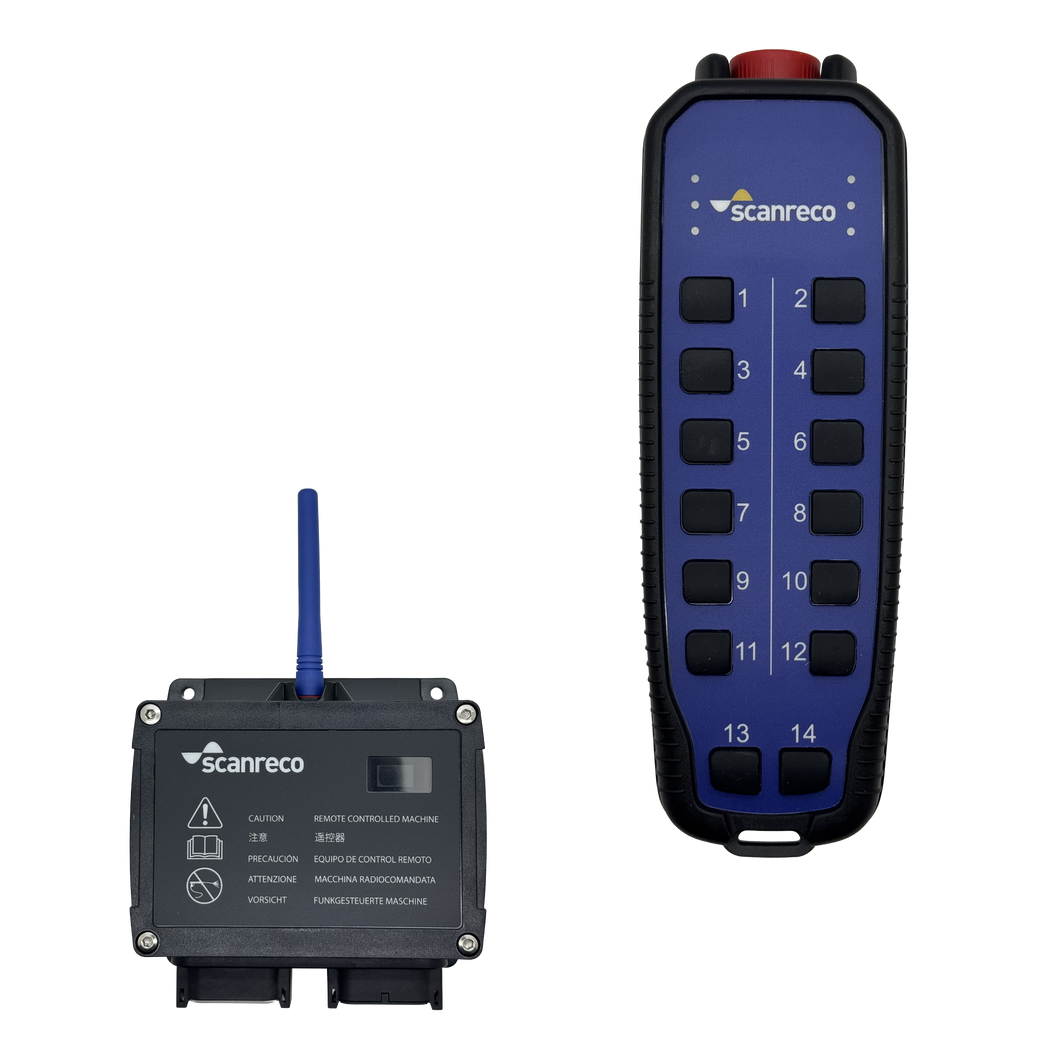

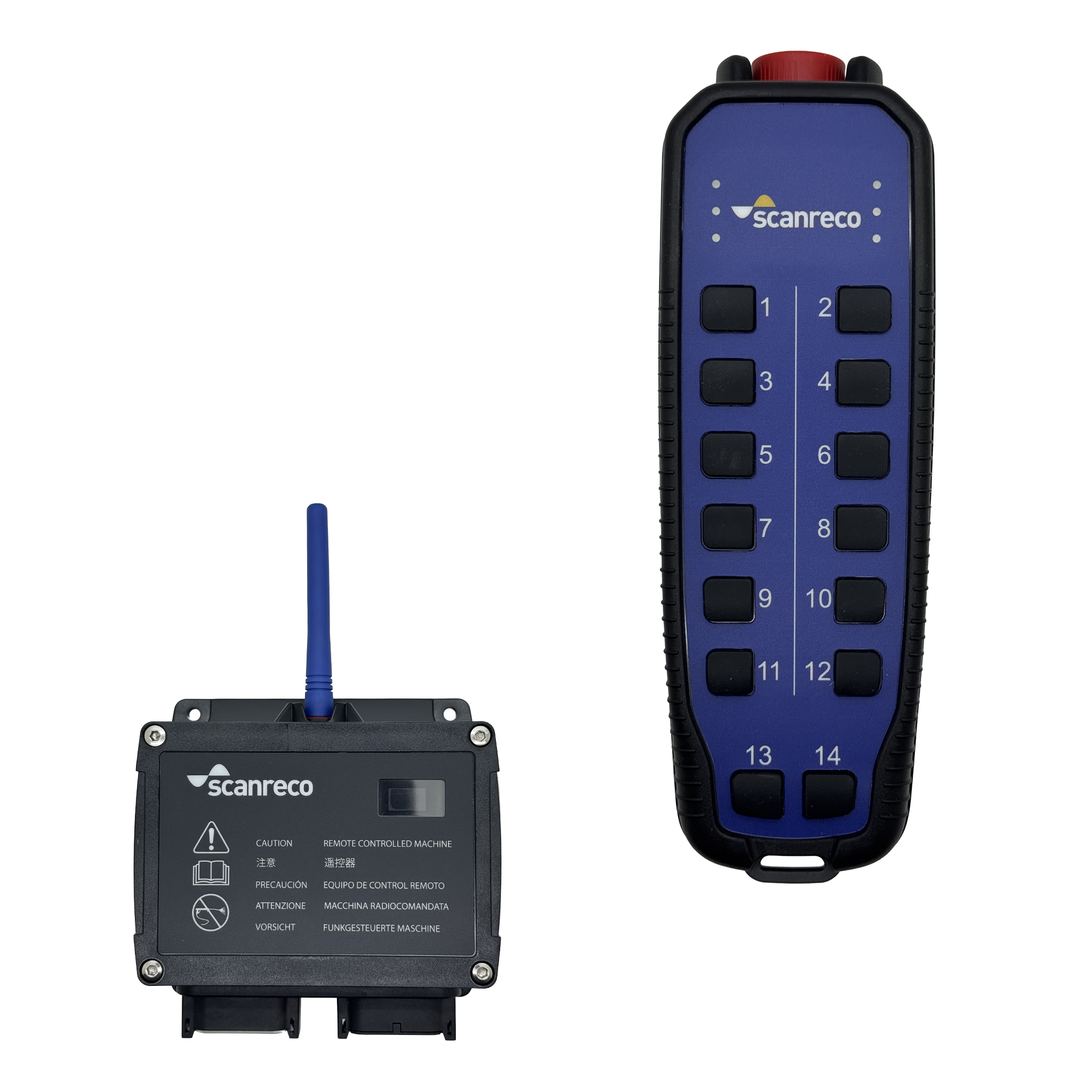

Scanreco Rocket Flex with G5-M19A Receiver
Compact control system with powerful capabilities.
The Scanreco Rocket Flex system combines the versatile Rocket Flex transmitter with the robust G5-M19A receiver, delivering a complete radio remote control solution for demanding hydraulic and industrial applications.
Designed for precision and reliability, the Rocket Flex offers 14 configurable push-buttons, with feedback via 5 integrated LEDs. Its ergonomic, IP65-rated housing and long operational life make it ideal for outdoor or mobile use — from cranes and lifting equipment to custom-built hydraulic systems.
Paired with the Scanreco G5-M19A receiver, the system provides up to 19 digital MOSFET outputs, of which 14 can be reconfigured as digital inputs, giving you full flexibility in system integration. The receiver supports 12/24 VDC supply voltage, is IP67 rated for extreme durability, and is protected against short circuits and electrical transients.
Together, the Rocket Flex and G5-M19A offer a compact, configurable, and dependable remote control system ready for integration into your toughest jobs.
System Configuration Highlights:

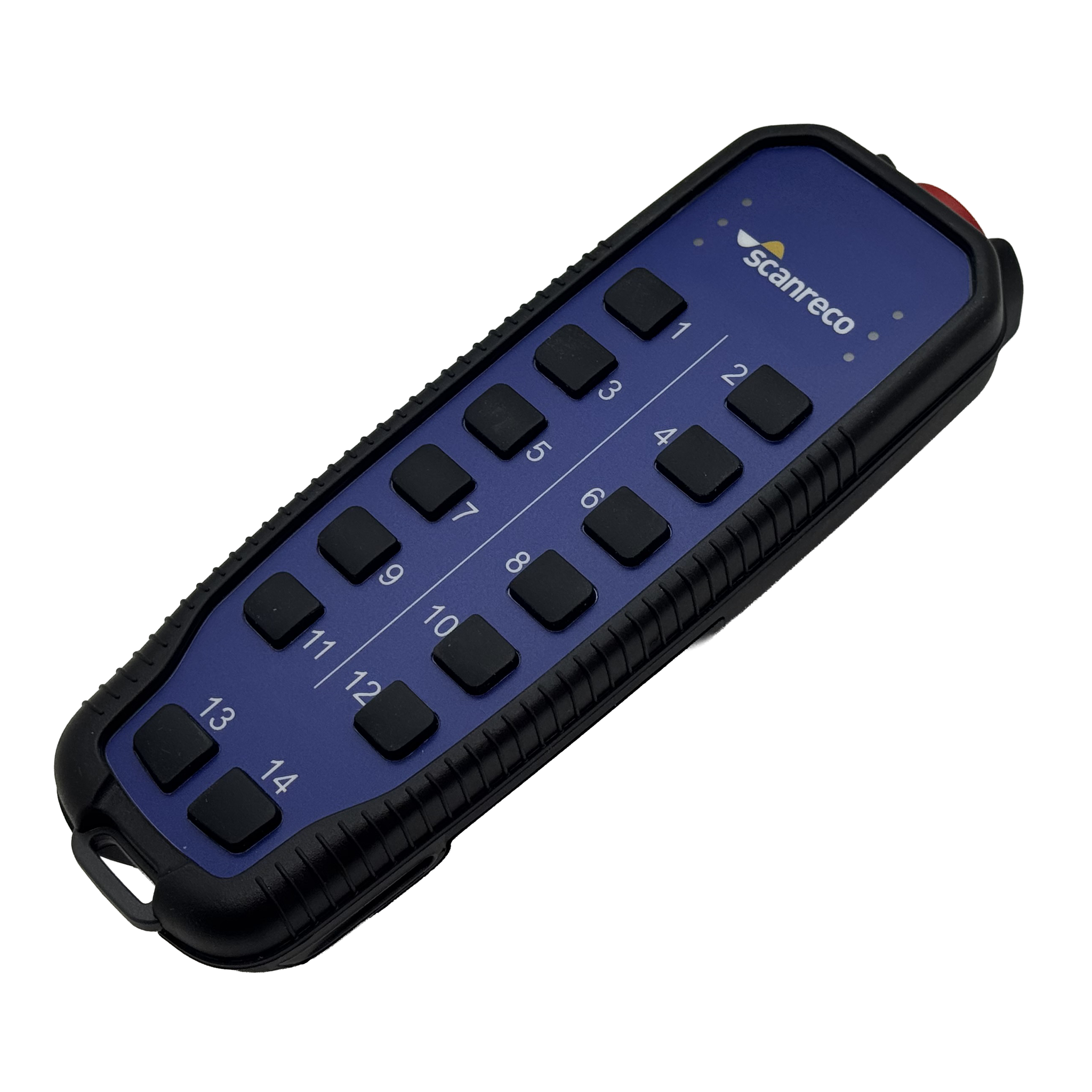

Rocket Flex Transmitter:
-
14 push-buttons (buttons 1-12 = output functions, 13 = ON, 14 = OFF)
-
Each push-button commands the respective output + dump valve output
-
LED feedback indicators for Power, Battery Low & Charging
-
Stop function per EN ISO 13849-1 Cat. 3, PL d
-
3x AA rechargeable batteries with up to 120 hours runtime
-
Operating range: >100 m (330+ ft)
-
Operating temperature: –25°C to +55°C
-
IP65 protection rating
-
Dimensions: 69 × 213 × 48 mm
-
Weight: 400 g (with batteries)

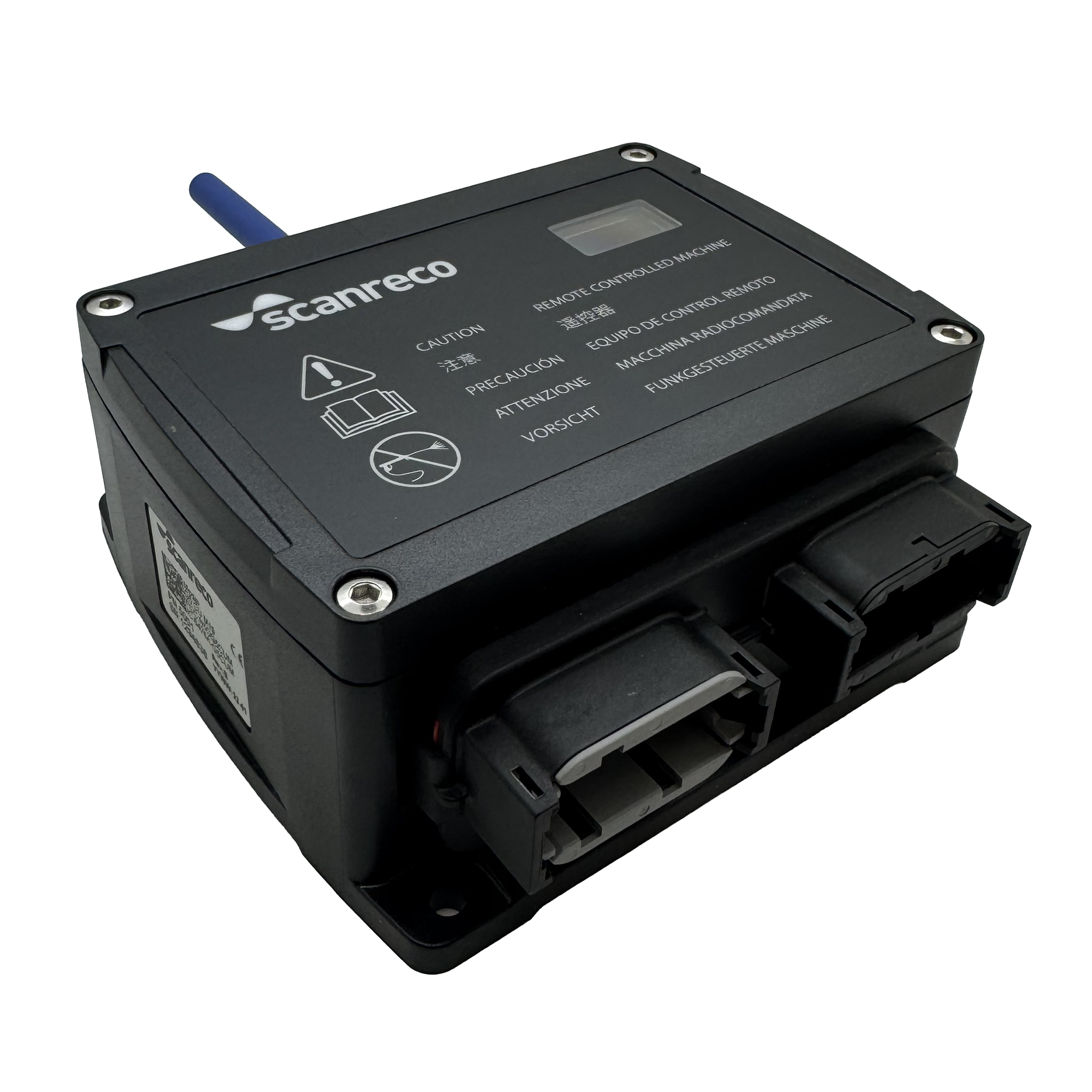

G5-M19 Receiver:
-
12 digital MOSFET outputs + dump valve output
-
Max load: 3A per output / 10A total system load
-
12/24 VDC supply
-
Short-circuit and transient protection
-
IP67 protection rating
-
Deutsch 12-pin connectors (x2) for secure connections
- Frequency band: 2.4 GHz
-
Operating temperature: –25°C to +70°C
-
Dimensions: 127 × 186 × 57 mm (5.0 × 7.3 × 2.2 in)
What's Included:
-
Rocket Flex Control Unit With Integrated Belt Clip
-
G5-M19A Receiver Unit
-
3x AA rechargeable batteries
-

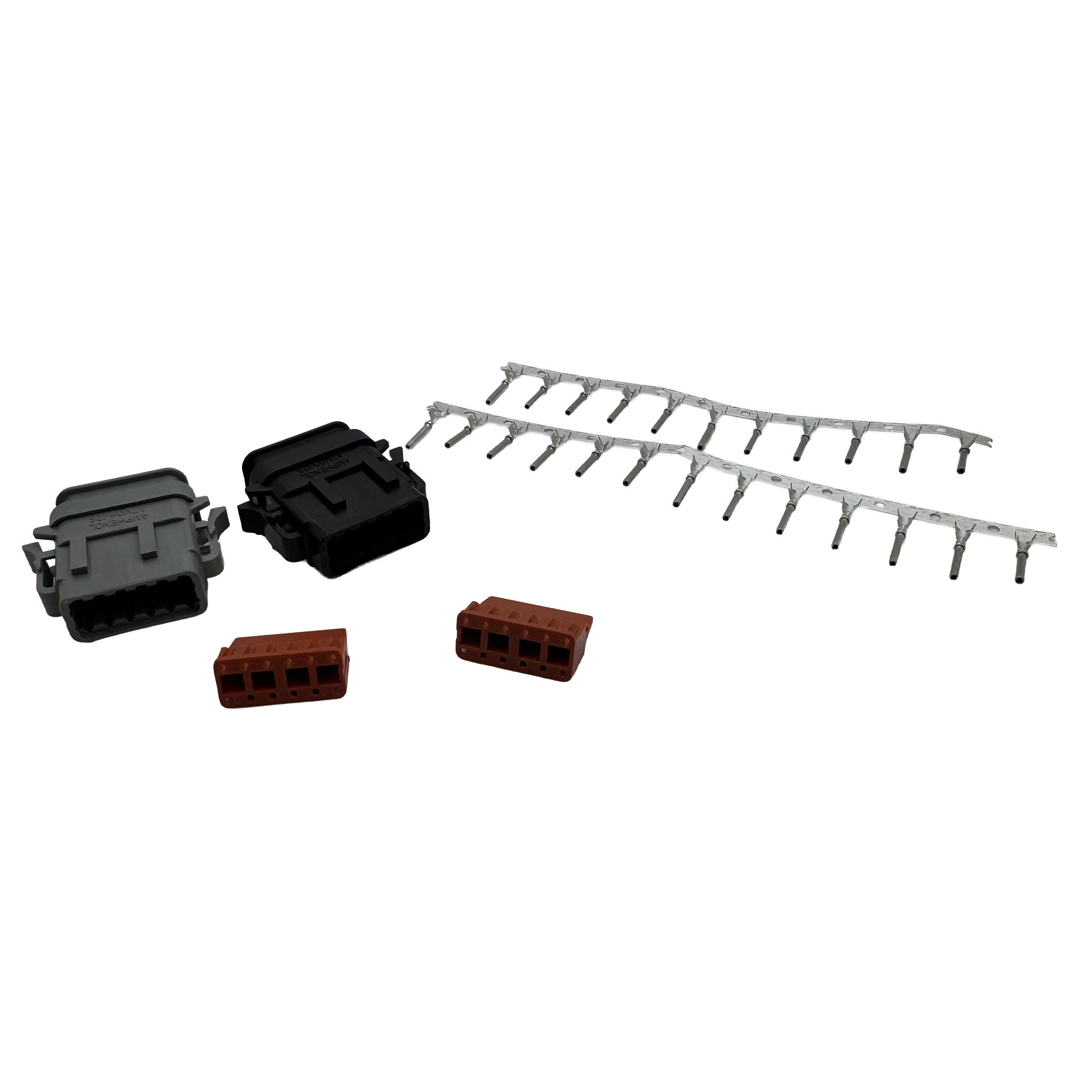

Deutsch Connector Plug Kit
*Please note, the images displayed may not be the true representation of the product.
