Sunfab Variable Displacement Pumps

The Sunfab Variable Displacement Pump with its rugged construction is designed for direct mounting at the auxiliary drive (P.T.O.) of commercial vehicles.

The variable displacement pumps have a maximum displacement of 130 cm3/rev. and a peak pressure of 450 bar therefore, it is suited for many applications. This is complemented by the high self-priming rate and the low noise level. The pump delivery flow is dependent on the present drive speed and geometric displacement. The displacement pumps flow is adjustable in a range between 0 and Qmax.

Long service life is ensured due to the pressurized lubrication of the swash plate bearing shell.

The benefits of the Sunfab Variable Displacement Pump (SVH) include:

Short reaction time when resetting the flow.

Compact installation dimensions.

High working pressure level allowed.

Externally drained for best cooling.

Rugged construction and long service life.

Low noise emission.

High power to weight ratio.

Key features of the Sunfab Variable Displacement Pump (SVH) include:

LS Variable Axial Piston Unit for Truck Mount PTO Applications.

High volume/pressure 130cc/rev displacement @ 450 bar max.

Through drive to accept another DIN 5462 4 Bolt Pump.

Slim design.

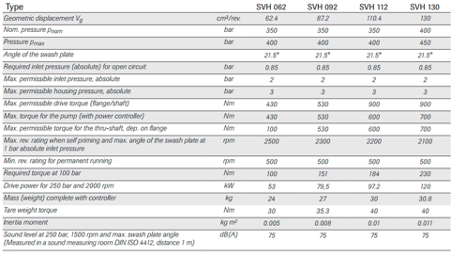

Technical Specifications of the Sunfab Variable Displacement Pump:

Please also see the full data sheet from Sunfab

Sunfab is a world leader in hydraulics. Sunfab develops and manufactures components to operate hydraulic equipment within the area of mobile hydraulics. VHS Hydraulic Components is a proud Sunfab UK distributor that stock and supply a wide range of Sunfab hydraulic pumps and motors, including Sunfab Single Flow Pumps, SSM Motors, and many more Sunfab products.


To enquire about Sunfab Variable Displacement Pumps, please contact VHS Hydraulic Components on: 0114 276 4430   / E: or visit our website at:
